General Engineering Casting
As a leading general engineering casting supplier, we develop the casting parts according to the customer's drawing and specification, and can supply bulk quantities regularly. Our commitment as an engineering parts casting manufacturer ensures high-quality industrial casting components tailored to your exact needs.
Precision Components
The precision-casting general engineering components are manufactured to domestic and global standards.

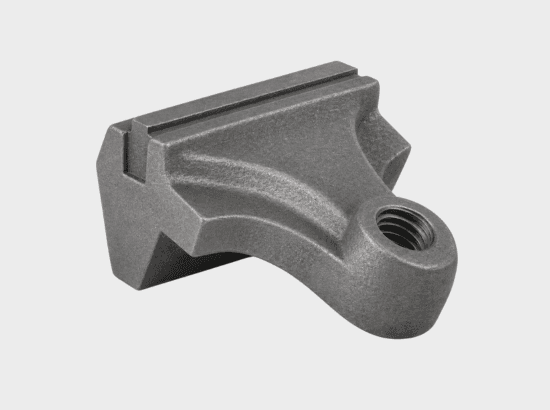

Crusher Wear Components
Crusher wear components are the sacrificial parts designed to absorb the extreme impact, abrasion and pressure of proces...

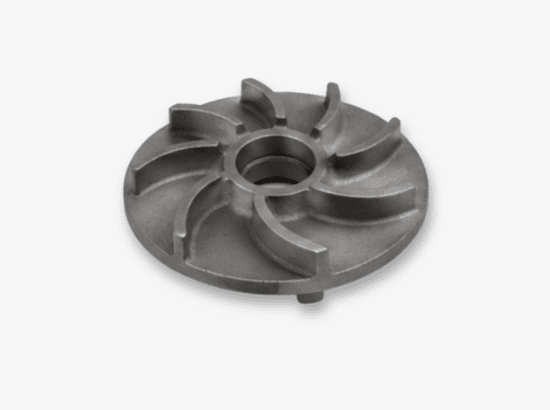

Pump Wear Parts
These are the sacrificial components which are designed to degrade over time and protect major structural elements like...
Agricultural Tines & Teeth
Agricultural tines and teeth are the crucial components for tillage, sowing and harvesting. These are manufactured from...

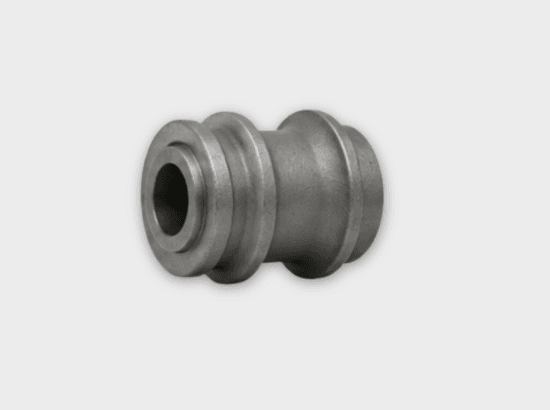

Conveyor Roller Components
The conveyor roller components work together to yield structural support, minimise friction and ensure smooth material m...

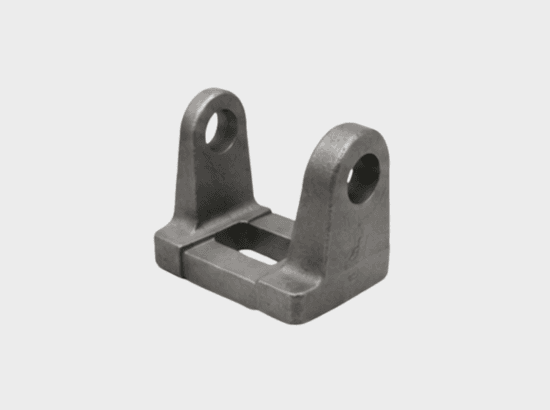

Material Handling Wear Components
These are sacrificial, high-friction and impact-resistant parts designed to protect primary equipment. They are vital fo...
Technical Specifications Framework
| PARAMETER | VALUE |
|---|---|
| Casting | |
| Weight Range | 0.02 Kg (20Grams) to 30 Kg |
| Dimensional Tolerances (Castings) | IS11166/VDG P690 |
| Surface Finish (Casting) | Ra 1.6 to Ra 3.2 |
| Maximum Size Envelope | 400mm x 400mm x 400mm |
| Machining | |
| Dimensional Tolerances (Machining) | ISO 2768 (f) |
| Surface Finish (Machining) | 1.6 to 3.2 Ra |
| Maximum Size Envelope | 400mm x 400mm x 400mm |
Special Process Steps for General Engineering
The special process in general engineering is a process where the resulting output cannot be completely verified by subsequent non-destructive inspection.
Process Identification
Determine which process cannot be fully verified by visual or dimensional checks. This process often involves welding, coatings, and heat treatment.
Establish Parameters & Specifications
Clearly document the particular variables that manage the process’s success. These processes are outlined in a process control plan. Reviewing established guidelines can help ensure the methodology is sound.
Equipment Qualification
It includes installation qualification, operational qualification and performance qualification. All these help to set up the machine, controlling the process and provide objective evidence.
Personnel Certification and Training
Only qualified and certified operators can perform special processes. Technicians must hold valid certifications and complete periodic re-qualification.
Material Database
| Material | Classification | Grades (For Example not limited to) |
|---|---|---|
| Stainless Steel | Austenitic | 304, 304L, 316, 316L, 321, 347 |
| Ferritic | 409, 430, 439, 444 | |
| Martensitic | 410, 420, 431, 440A, 440B, 440C | |
| Duplex / Super Duplex | 2205, 2507 | |
| Carbon Steel | Low Carbon Steel | WCA, WCB, WCC, AISI 1008–1020 |
| Medium Carbon Steel | AISI 1030, 1035, 1040, 1045, 1050 | |
| High Carbon Steel | AISI 1060, 1070, 1080, 1095 | |
| Alloy Steel | Low Alloy Steel | 4130, 4140, 4145, 4340, 8620 |
| Wear Resistant Alloy Steel | Manganese Steel, Ni-Hard | |
| Heat & Creep Resistant Alloy Steel | WC1, WC5, WC6, WC9, C5, C12A |
Quality Assurance
Inspection and certification protocols applied to every General Engineering order — beyond our baseline IATF / ISO / PED quality systems.
Metrology Laboratory
Dimensional verification down to micron level using CMM inspection and laser scanning.
Spectral & X-Ray Testing
Every casting passes non-destructive testing that confirms sound internal structure.
IATF 16949:2016 Certified
Operations run to the IATF 16949:2016 global quality management system standard.
Are You Ready for an Engineering Future?
Our team of technical professionals are ready to assist you with your next intricate project. Check the detailed quote within 24 hours.
