Investment Casting for Oil and Gas
As a premier oil gas casting manufacturer and specialist in investment casting oil gas, we design components capable of withstanding extreme high-pressure and corrosive environments. Our capability as a trusted pressure vessel casting supplier ensures the highest safety standards across all operations.
Precision Components
The precision-casting oil & gas components are manufactured to domestic and global standards.

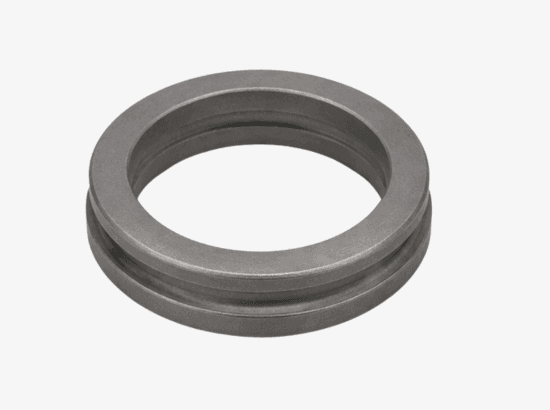

Valve Seats
It is the stationary, ring-shaped surface inside an engine’s cylinder head that an intake or exhaust valve presses again...
Valve Trim Components
These are the removable, replaceable internal parts of a valve that directly contact the process fluid.

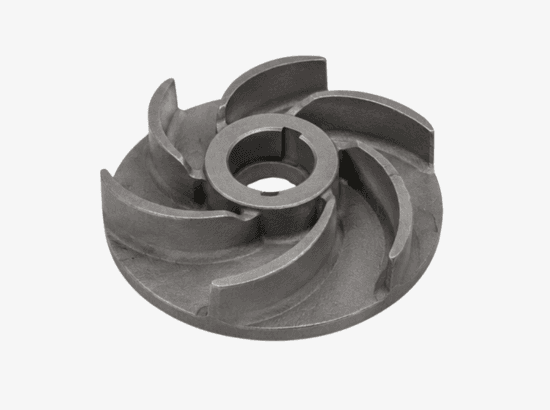

Pump Impellers
The pump impeller is the rotating component of a centrifugal pump that transfers energy from the motor to the fluid bein...

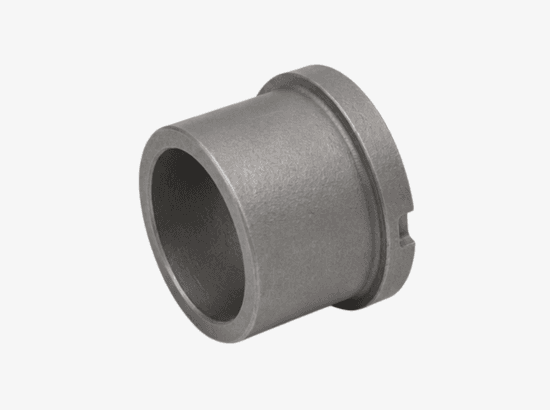

Wear Bushings
The wear bushing is a sacrificial sleeve that is installed inside wellhead housings or casing spools in the oil and gas...
Technical Specifications Framework
| PARAMETER | VALUE |
|---|---|
| Casting | |
| Weight Range | 0.02 Kg (20Grams) to 30 Kg |
| Dimensional Tolerances (Castings) | IS11166/VDG P690 |
| Surface Finish (Casting) | Ra 1.6 to Ra 3.2 |
| Maximum Size Envelope | 400mm x 400mm x 400mm |
| Machining | |
| Dimensional Tolerances (Machining) | ISO 2768 (f) |
| Surface Finish (Machining) | 1.6 to 3.2 Ra |
| Maximum Size Envelope | 400mm x 400mm x 400mm |
Special Process Steps for Oil & Gas
Our oil & gas workflow applies non-destructive testing and material verification at each stage to ensure castings meet the integrity and reliability demands of pressure-containing energy-sector service.
Radiographic Testing
Penetrant Testing
Magnetic Particle Testing
Positive Material Identification
Material Database
| Material | Classification | Grades (For Example not limited to) |
|---|---|---|
| Stainless Steel | Austenitic | 304, 304L, 316, 316L, 321, 347 |
| Ferritic | 409, 430, 439, 444 | |
| Martensitic | 410, 420, 431, 440A, 440B, 440C | |
| Duplex / Super Duplex | 2205, 2507 | |
| Carbon Steel | Low Carbon Steel | WCA, WCB, WCC, AISI 1008–1020 |
| Medium Carbon Steel | AISI 1030, 1035, 1040, 1045, 1050 | |
| High Carbon Steel | AISI 1060, 1070, 1080, 1095 | |
| Alloy Steel | Low Alloy Steel | 4130, 4140, 4145, 4340, 8620 |
| Wear Resistant Alloy Steel | Manganese Steel, Ni-Hard | |
| Heat & Creep Resistant Alloy Steel | WC1, WC5, WC6, WC9, C5, C12A |
Quality Assurance
Inspection and certification protocols applied to every Oil & Gas order — beyond our baseline IATF / ISO / PED quality systems.
Metrology Laboratory
Micron-level dimensional verification through coordinate measuring and laser scanning.
IATF 16949:2016 Certified
Certified against IATF 16949:2016, the global standard for quality management systems.
Spectral & X-Ray Testing
Non-destructive X-ray and spectral testing confirms the internal structure of each casting.
