Pumps & Valves
As a trusted valve body casting manufacturer and precision valve casting supplier, we ensure top-tier production standards.
Precision Components
The precision-casting pumps & valves components are manufactured to domestic and global standards.

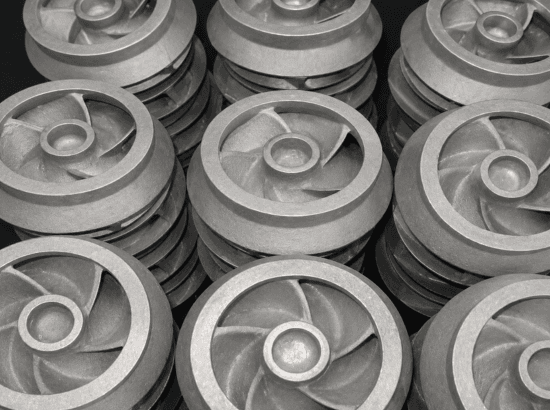

Open Impellers
The open impeller comprises vanes which are attached to a centre hub and mounted directly on a shaft. These are generall...

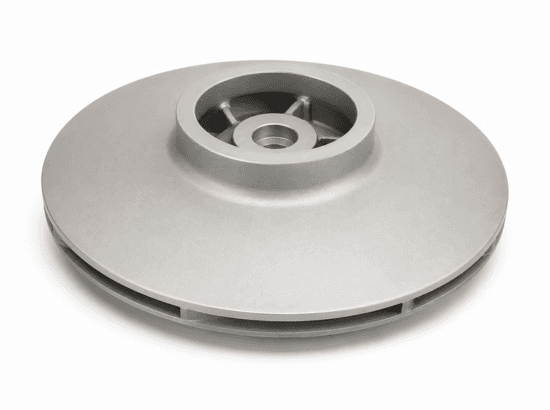

Closed Impellers
Closed impellers have a back and front wall around the vanes to increase the strength. Closed impellers are used in larg...

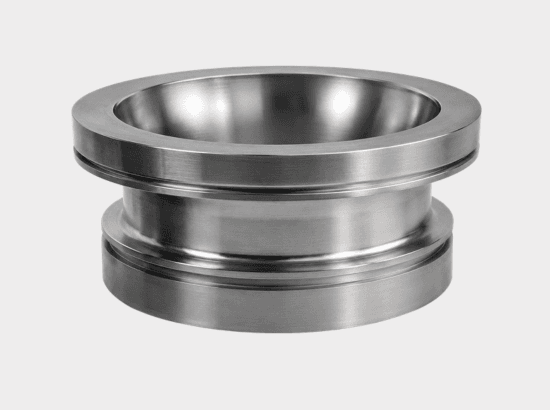

Valve Seats
Valve seats are the vital engine component which ensures proper sealing of the intake and exhaust valves. It prevents ga...

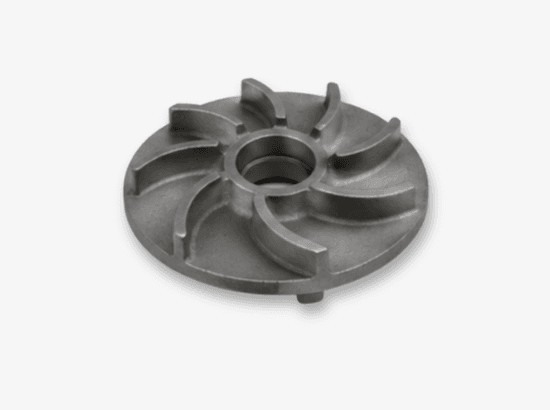

Pump Diffusers
These pumps use a series of stationary vanes or diffusers placed around the impeller. These help slow down the fluid as...
Technical Specifications Framework
| PARAMETER | VALUE |
|---|---|
| Casting | |
| Weight Range | 0.02 Kg (20Grams) to 30 Kg |
| Dimensional Tolerances (Castings) | IS11166/VDG P690 |
| Surface Finish (Casting) | Ra 1.6 to Ra 3.2 |
| Maximum Size Envelope | 400mm x 400mm x 400mm |
| Machining | |
| Dimensional Tolerances (Machining) | ISO 2768 (f) |
| Surface Finish (Machining) | 1.6 to 3.2 Ra |
| Maximum Size Envelope | 400mm x 400mm x 400mm |
Special Process Steps for Pumps & Valves
Special process steps for pumps and valves include precise pre-commissioning, alignment and step-by-step start and shutdown. Utilizing advanced investment casting for pumps valves, these procedures are vital for preventing premature mechanical seal failure and water hammer.
Clean & Inspect
Check stuffing boxes for excessive clearances.
Packing Installation
Calculate packing cross-sections and cut rings cleanly.
Alignment
Laser-align the driver to the pump to prevent premature bearing wear.
Start & Adjust
Start the motor, verify the direction of rotation and slowly open the discharge valve.
Material Database
| Material | Classification | Grades (For Example not limited to) |
|---|---|---|
| Stainless Steel | Austenitic | 304, 304L, 316, 316L, 321, 347 |
| Ferritic | 409, 430, 439, 444 | |
| Martensitic | 410, 420, 431, 440A, 440B, 440C | |
| Duplex / Super Duplex | 2205, 2507 | |
| Carbon Steel | Low Carbon Steel | WCA, WCB, WCC, AISI 1008–1020 |
| Medium Carbon Steel | AISI 1030, 1035, 1040, 1045, 1050 | |
| High Carbon Steel | AISI 1060, 1070, 1080, 1095 | |
| Alloy Steel | Low Alloy Steel | 4130, 4140, 4145, 4340, 8620 |
| Wear Resistant Alloy Steel | Manganese Steel, Ni-Hard | |
| Heat & Creep Resistant Alloy Steel | WC1, WC5, WC6, WC9, C5, C12A |
Quality Assurance
Inspection and certification protocols applied to every Pumps & Valves order — beyond our baseline IATF / ISO / PED quality systems.
Spectral & X-Ray Testing
Non-destructive spectral and X-ray protocols that verify the internal structural integrity of every casting.
IATF 16949:2016 Certified
Certified to the global automotive quality management system standard across the full production line.
Metrology Laboratory
In-house CMM inspection and laser scanning delivering micron-level dimensional verification.
Are You Ready for an Engineering Future?
Our team of technical professionals are ready to assist you with your next intricate project. Check the detailed quote within 24 hours.
